Description
Application

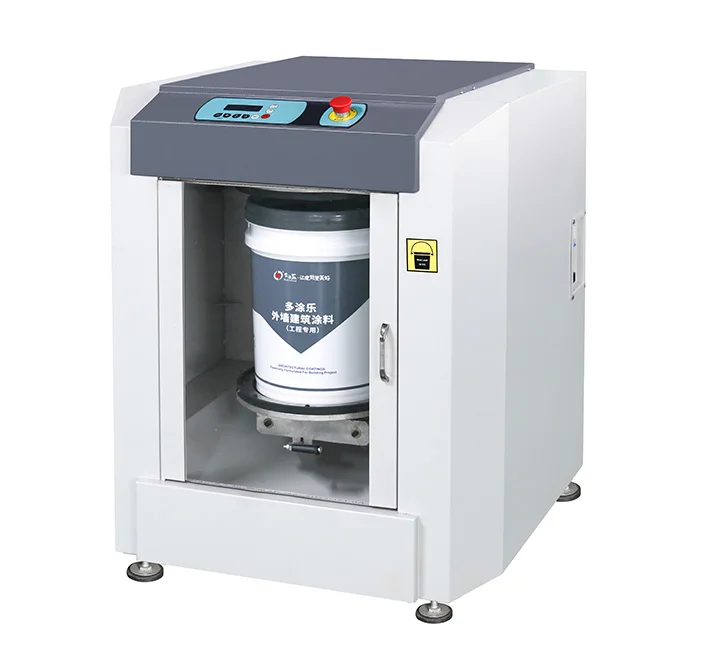

The CG-2A-03 gyroscopic mixer, one of the market’s most advanced models, utilizes an intelligent, configurable control system to manage speed and time, delivering highly effective and proper mixing for a wide selection of products such as paints, coatings, inks, and chemicals, regardless of can materials and sizes, thereby maximizing operational efficiency and ensuring consistent results.
Highlights
- Rotation and revolution go simultaneously during mixing;
- Single-directional and bi-directional rotating for options, mixing quickly and thoroughly;
- Mixing speed can vary in function of weight and can shape;
- Automatic repositioning of the clamping plates, eliminates unnecessary operations;
- Chinese and English user interface for option;

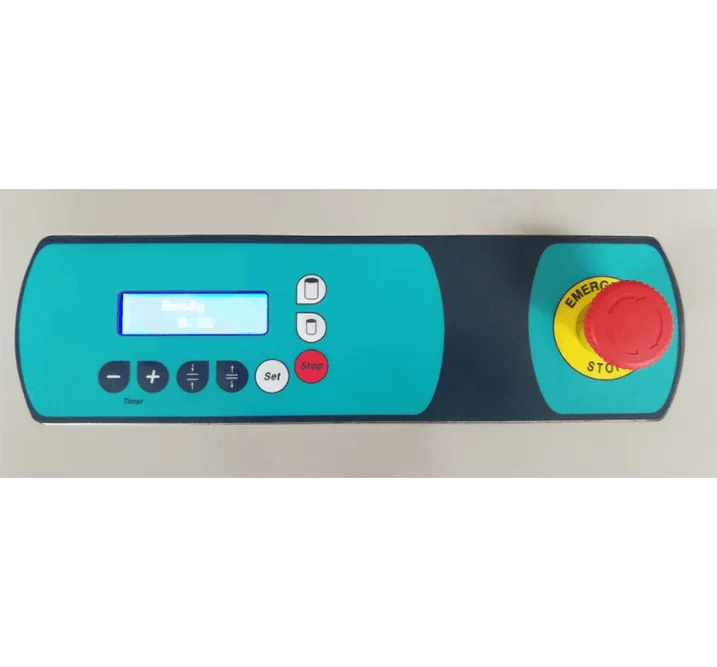

- The LCD display is easier to read for the operator and clearly shows each phase of the mixing process;

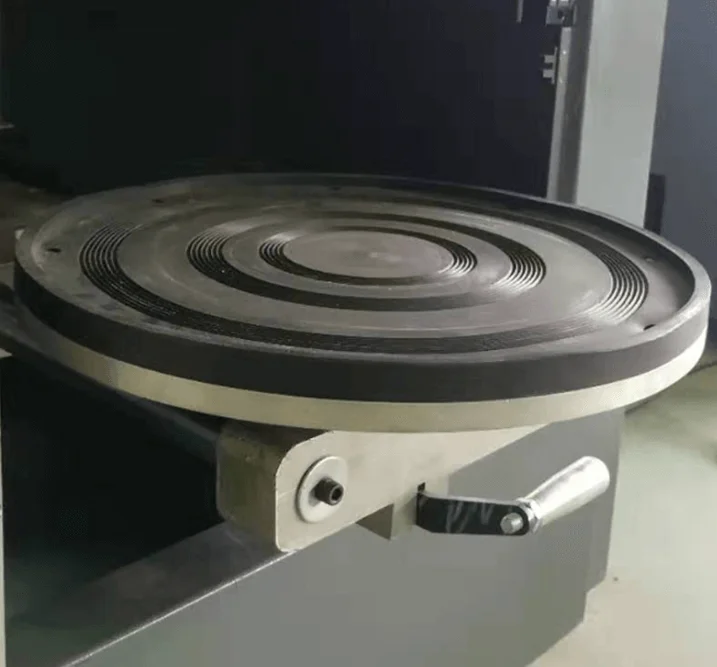

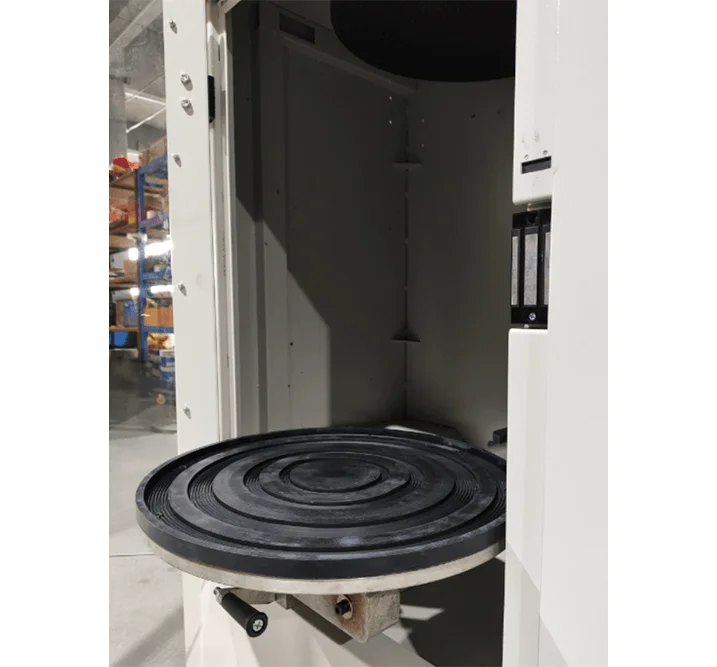

- Forward-movable lower clamping plate, load and unload can conveniently;
- Wheels and feet at bottom, convenient to move the mixer;
- The failure testing program can judge the fault easily;
- The data of inverter is automatically set, leaving you no trouble when replacing inverter

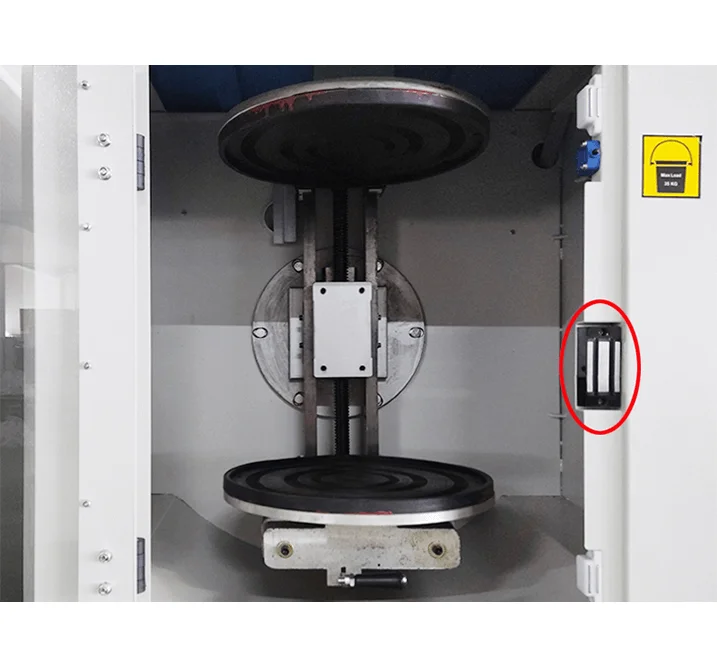

- Electric-magnetic lock, keep the door closed during mixing
Product Parameter
| BASE FEATURES | |
| Type | Gyroscopic mixer |
| Clamping function | Automatic |
| Plate positioning after mixing cycle | Automatic |
| Mixing time | From 15 sec to 9 min 45 sec |
| Big can Mixing speed (can height ≥220mm) | 50 rpm – 100 rpm |
| Small can Mixing speed (can height <220mm) | 50 rpm – 150 rpm |
| Mixing direction | Single-direction and bi-direction for option |
| CAN SPECS | |
| Type of cans | Round / Square |
| Suitable can height | 90mm – 410mm |
| Maximum can diameter | 360mm |
| Maximun can weight | 35 KG |
| POWER SUPPLY / MACHINE ENVIRONMENT | |
| Power supply | Single phase 110 /220 V ±10% — 50/60 HZ |
| Rated Power | 750 W |
| DIMENSIONS | |
| Machine Size | 780(L)*770 (W)*1020(H) MM |
| Footprint | 0.6m2 |
| WEIGHT | |
| Machine Weight | 184 KG |
| Gross Weight | 204 KG |
| LOADING QUANTITY | 42 sets / 20″ Container |
| PACKING | Carton |
System Components
The CG-2A-03 gyroscopic mixer system consists of:
Dual rotation and revolution ensure fast, homogeneous mixing for various liquid materials.
Securely holds different container sizes, enabling quick loading and safe operation.
Provides stable power with adjustable speed to handle different viscosities.
Digital interface for precise time setting and easy operation.
Robust design with vibration control for smooth and reliable operation.
The integrated workflow ensures efficient and stable production from start to finish.
Detail Photos & Videos
FAQ
What materials can the CG-2A-03 gyroscopic mixer handle?
The CG-2A-03 gyroscopic mixer is designed for mixing high-viscosity liquids such as paints, inks, coatings, and other chemical fluids. It can also be used for non-corrosive liquids like cosmetics and emulsions, ensuring uniform and efficient blending.
How does the gyroscopic mixing system work?
The CG-2A-03 gyroscopic mixer uses a dual-motion mechanism combining rotation and revolution, allowing materials to be mixed evenly from all directions. This multi-axis movement ensures fast, homogeneous results, even for thick or settled substances.
What is the maximum capacity of the CG-2A-03 gyroscopic mixer?
The CG-2A-03 gyroscopic mixer supports containers up to approximately 35 kg, with adjustable speed ranges typically between 50–150 rpm and mixing times from seconds up to several minutes, making it suitable for various production needs.
Is the CG-2A-03 gyroscopic mixer safe to operate?
Yes, the CG-2A-03 gyroscopic mixer is equipped with multiple safety features, including door interlock protection, emergency stop functions, and automatic self-check systems, ensuring safe and reliable operation during use.
