Description
Application
The CG-2S-02 automatic paint shaker is designed for fast and uniform mixing of paints, inks, coatings, and other liquid or semi-liquid materials. It is widely used in paint stores, factories, and color mixing systems to ensure consistent product quality. The automatic paint shaker only needs a few steps to start working, which is extremely appreciated by the operators. It can select the correct parameters to optimize clamping force and shaking time for you. When operating, the shaker surprises with its silence; the design of the frame contributes to absorbing the bothersome noises.
Highlights
- Automatic clamping;
- Low noise during shaking;
- Quickly and thoroughly mix by high speed vibration;
- Optional shaking time between 1 – 9 mins;
- Adjustable clamping force for different sizes of can;
- Chinese and English user interface for option;
- The LCD display is easier to read for the operator and clearly shows each phase of the mixing process;
- Simple electrical structure, easy to maintain;
- Wheels and feet at bottom, convenient to move the mixer;
- Electric-magnetic lock keeps the door closed during mixing; Safety inspection switch for the door: the shaker will stop running when the door is open.
- Shaking structure is separate from the case and will not affect the case during high-speed shaking;
- Centrifugal switch and overheating protection for the shaking motor, effective in extending the motor life;
Product Parameter
| BASE FEATURES | |
| Type | Vibrating Shaker |
| Clamping function | Automatic |
| Plate positioning after mixing cycle | Automatic |
| Shaking time | 1 to 9 minutes |
| Shaking speed | Up to 710 shakes per minute |
| CAN SPECS | |
| Type of cans | Round / Square / Oval |
| Suitable can height | 80-380mm |
| Maximum can diameter | 350mm |
| Maximum can handling | Yes (The can must be the same height) |
| Maximum weight | 35 KG |
| POWER SUPPLY / MACHINE ENVIRONMENT | |
| Power supply | Single phase 110 /220 V ±10% — 50/60 HZ |
| Rated Power | 750 W |
| DIMENSIONS | |
| Machine Size | 720 (L) X 710(W) X 1045(H) MM |
| Footprint | 0.57 m2 |
| WEIGHT | |
| Machine Weight | 206 KG |
| Gross Weight | 224 KG |
| LOADING QUANTITY | 42 sets / 20″ Container |
| PACKING | Carton |
System Components
The CG-2S-02 automatic paint shaker system consists of:
High-frequency shaking motion ensures fast and uniform blending of materials, improving consistency and reducing mixing time.
Adjustable clamping mechanism securely holds containers of different sizes, preventing deformation and ensuring safe operation.
High-power motor provides stable vibration output with consistent performance for continuous industrial use.
Equipped with an intuitive control panel for setting mixing time and monitoring operation, ensuring precise and repeatable results.
Robust steel construction reduces vibration impact and enhances machine stability during high-speed operation.
The integrated workflow ensures efficient and stable production from start to finish.

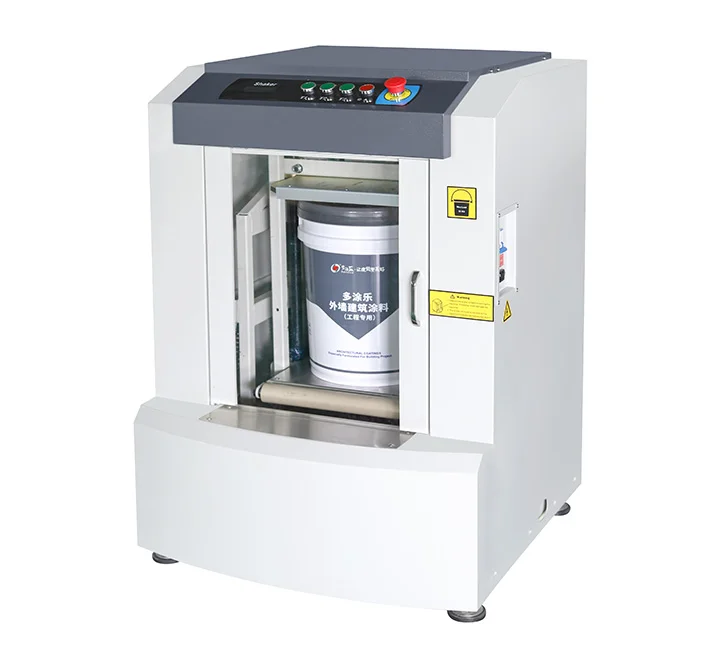

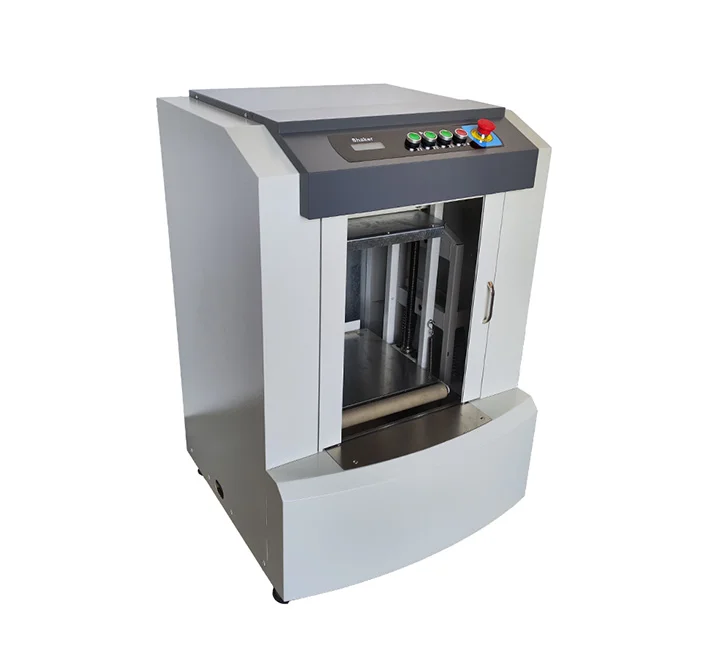

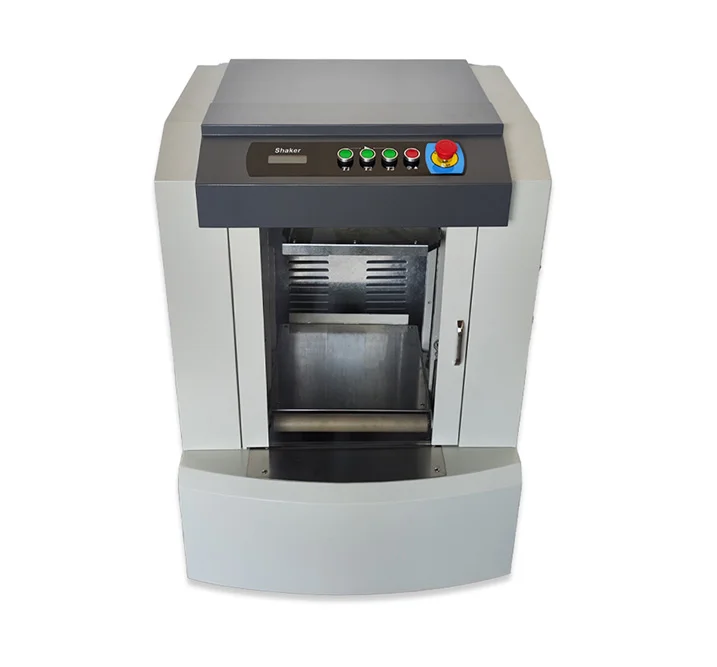

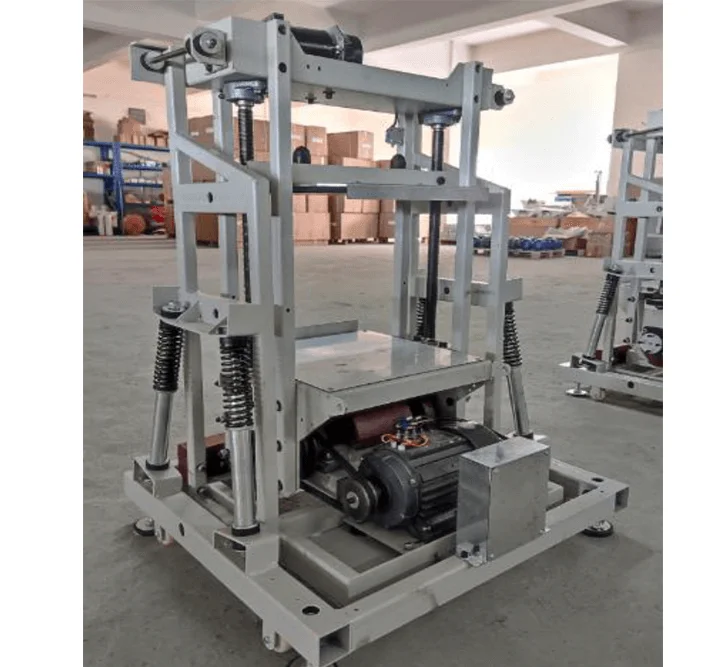

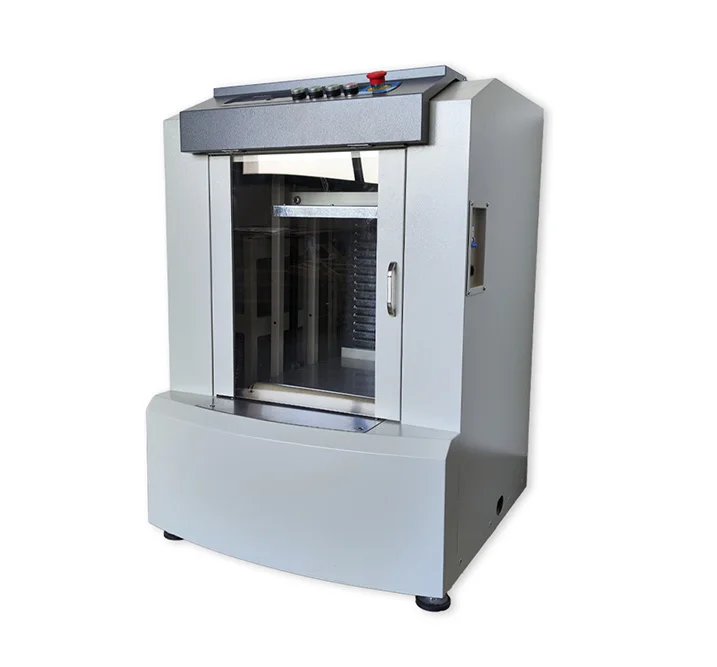

Detail Photos & Videos
FAQ
What is the CG-2S-02 automatic paint shaker used for?
The CG-2S-02 automatic paint shaker is designed for fast and uniform shaking of paints, inks, coatings, and other liquid or semi-liquid materials. It is widely used in paint stores, factories, and color mixing systems to ensure consistent product quality.
How does the CG-2S-02 automatic paint shaker mixing system work?
The CG-2S-02 automatic paint shaker uses a high-frequency vibration (shaking) system that moves the container up and down rapidly. This motion ensures thorough blending of materials without opening the container, improving efficiency and reducing contamination risk.
What types and sizes of containers can it handle?
The CG-2S-02 automatic paint shaker supports a wide range of containers, typically from small cans to medium industrial buckets (around 0.5L–20L). The automatic clamping system adjusts to different shapes and sizes for flexible operation.
What safety features are included in the CG-2S-02?
The CG-2S-02 automatic paint shaker is equipped with a door safety interlock, automatic clamping control, and emergency stop function. These features ensure safe operation by stopping the machine when the door is opened or when abnormal conditions occur.
