Description
Application

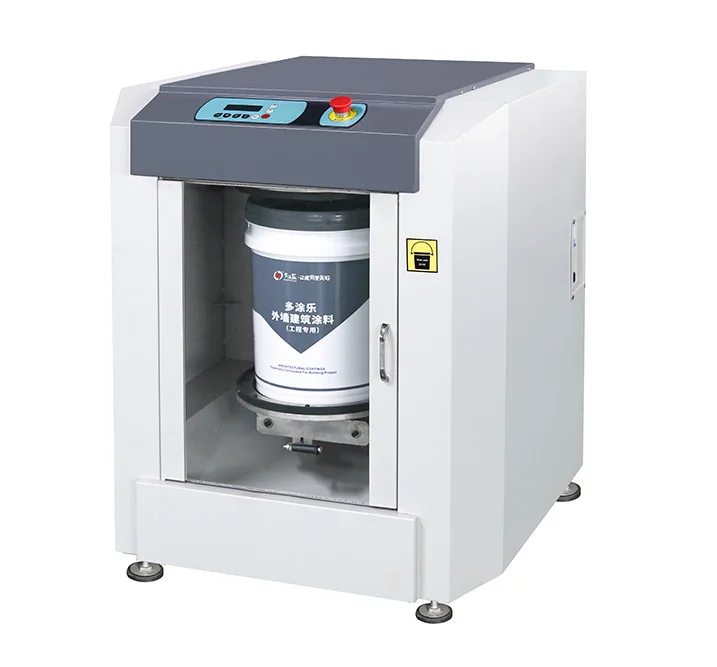

The CG-2A-05 gyro mixer is one of the most advanced gyroscopic mixers on the market. With an intelligent control system that manages speed and time according to configurable parameters, its main function is to mix in the most effective and proper way for a wide selection of products, coming in various types of can materials and sizes. The gyro mixer is designed for mixing paints, inks, coatings, and other high-viscosity liquids. It ensures uniform dispersion of pigments and additives, making it ideal for industrial and commercial color mixing applications.
Highlights
- Rotation and revolution go simultaneously during mixing;
- Single-directional and bi-directional rotating for options, mixing quickly and thoroughly;
- Mixing speed can vary in function of weight and can shape;
- Automatic repositioning of the clamping plates, eliminates unnecessary operations;
- Chinese and English user interface for option;
- The LCD display is easier to read for the operator and clearly shows each phase of the mixing process;

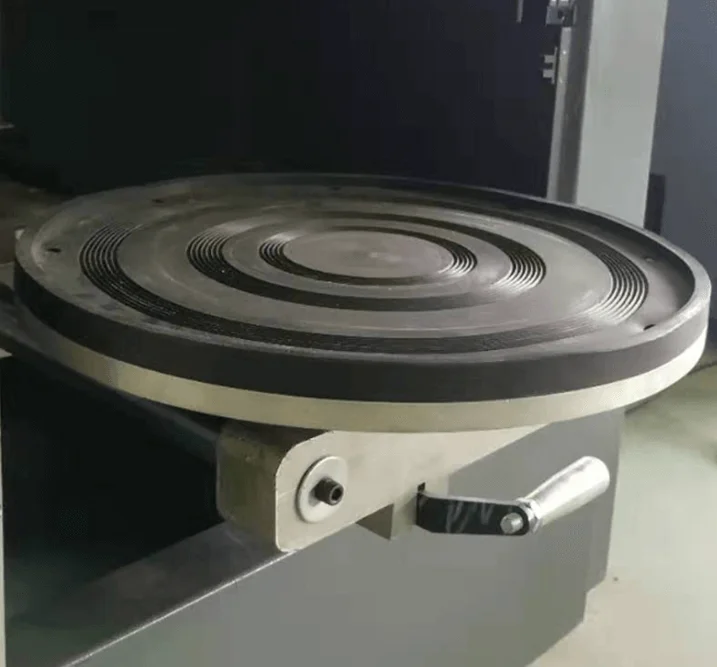

- Forward-movable lower clamping plate, load and unload can conveniently;
- Wheels and feet at bottom, convenient to move the mixer;
- The failure testing program can judge the fault easily;
- The data of inverter is automatically set, leaving you no trouble when replacing inverter

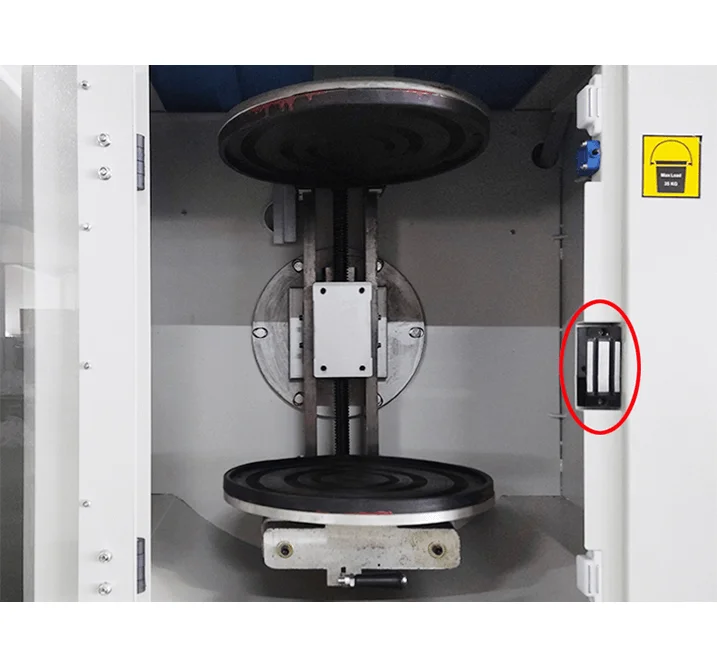

- Electric-magnetic lock, keep the door closed during mixing
Product Parameter
| BASE FEATURES | |
| Type | Gyroscopic mixer |
| Clamping function | Automatic |
| Plate positioning after mixing cycle | Automatic |
| Mixing time | From 45 sec to 9 min 45 sec |
| Big can Mixing speed (can height ≥220mm) | 50 rpm – 100 rpm |
| Small can Mixing speed (can height <220mm) | 50 rpm – 150 rpm |
| Mixing direction | Single-direction and bi-direction for option |
| CAN SPECS | |
| Type of cans | Round / Square |
| Suitable can height | 90mm – 500mm |
| Maximum can diameter | 360mm |
| Maximum can weight | 35 KG |
| POWER SUPPLY / MACHINE ENVIRONMENT | |
| Power supply | Single phase 110 /220 V ±10% — 50/60 HZ |
| Rated Power | 750 W |
| DIMENSIONS | |
| Machine Size | 880(L)*775 (W)*1210(H) MM |
| Footprint | 0.68 m2 |
| WEIGHT | |
| Machine Weight | 222 KG |
| Gross Weight | 242 KG |
| LOADING QUANTITY | 14 sets / 20″ Container |
| PACKING | Carton |
System Components
The CG-2A-05 gyro mixer system consists of:
Simultaneous rotation and revolution enable multi-directional mixing, ensuring fast and homogeneous blending of materials.

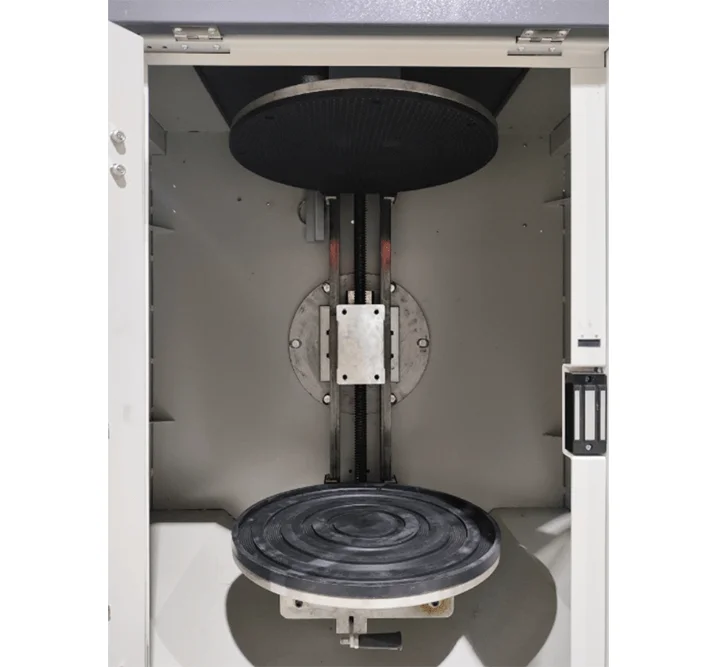

Fully automated clamping secures containers of various sizes, while the movable base platform simplifies loading and unloading.
A stable motor system provides adjustable speed control to handle different viscosities and container sizes with consistent performance.

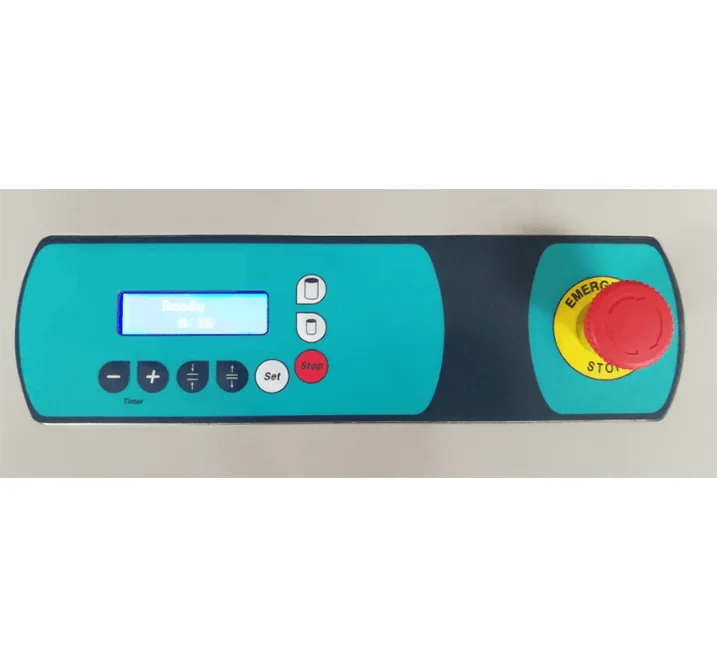

The digital display allows precise time setting and real-time countdown monitoring, improving operational accuracy and repeatability.
Robust construction with vibration control ensures stable operation, reduced noise, and long service life.
The integrated workflow ensures efficient and stable production from start to finish.
Detail Photos & Videos
FAQ
What is the CG-2A-05 paint gyro mixer used for?
The CG-2A-05 gyro mixer is designed for mixing paints, inks, coatings, and other high-viscosity liquids. It ensures uniform dispersion of pigments and additives, making it ideal for industrial and commercial color mixing applications.
How does the gyroscopic mixing system work?
The CG-2A-05 gyro mixer operates using a dual-axis gyroscopic motion (rotation and revolution), which allows the container to move in multiple directions simultaneously. This ensures fast, thorough, and bubble-free mixing results.
What container sizes can the CG-2A-05 gyro mixer handle?
The CG-2A-05 gyro mixer supports a wide range of container sizes, typically from small cans to large industrial buckets, with adjustable clamping to accommodate different heights and diameters. It is suitable for various production requirements.
What safety features does the CG-2A-05 gyro mixer include?
The CG-2A-05 gyro mixer is equipped with multiple safety protections, including a door interlock system, emergency stop button, and automatic clamping detection, ensuring safe and stable operation during every mixing cycle.
