Description
Application

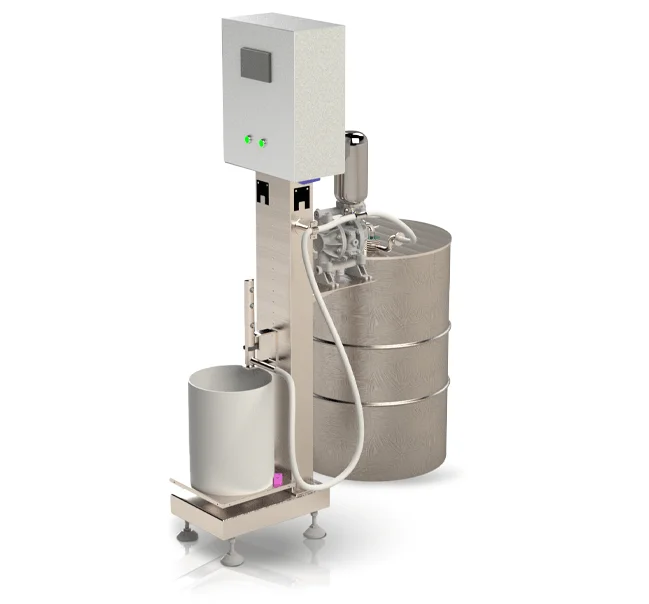

The DC-X single-channel paint dispenser is a high-precision gravimetric dispenser designed for liquid chemical raw material addition. It delivers ±1g dosing accuracy per 30kg, features a modular design for single- or multi-unit deployment, and seamlessly integrates with ERP/MES systems. Available in EX and Non-EX versions, the DC-X paint dispenser reduces material waste, automates consumption tracking, and ensures batch-to-batch consistency.
Highlights
The DC-X paint dispenser achieves industry-leading gravimetric accuracy of ±1g per 30kg, far surpassing the capabilities of manual dispensing methods. This precision liquid dispenser machine eliminates human error, ensures every batch matches the formula perfectly, and delivers consistent product quality.
Unlike large, fixed dispensing machines, the DC-X paint dispenser features a modular architecture of compact, independent units. Start with a single batching module for a specific production line or R&D purpose, and easily add more modules as your business grows. This scalable approach minimizes initial investment while maximizing long-term value.
The advanced two-stage multi-flow valve opens fully for fast bulk dispensing, then switches to a fine-tuning mode for the final grams. This intelligent approach ensures rapid throughput without compromising the ±1g accuracy – a critical advantage for high-volume production environments.
With a miniaturized design that occupies minimal floor space, the DC-X paint dispenser can be installed in tight production areas without requiring major facility renovations. Its small investment and convenient deployment make it ideal for upgrading existing facilities.
Product Parameter
| Working Environment | EX/Non-EX |
| Application | Water/Solvent Based Products |
| Type of Material Tank | 20L/200L/1000L |
| Minimum Container Opening | 280mm |
| Typical Batch Size | <30kg |
| Product Viscosity | <6000CPS |
| Performance | 1-2 min per 20L |
| Valve Type | Two-stage Multi Flow valve |
| Accuracy | ±1g per 30kg Range |
| Pump Size | 0.5″/1″ |
| Valve Cleaner | No Cleaning Required |
| Scale | < 30kg |
| Cabinet | Standard Control Cabinet/Explosion-proof Control Cabinet |
System Components
The DC-X single-channel paint dispenser system consists of:
Dedicated dispensing channel designed for precise dosing of a single material, ensuring high accuracy and stable performance in batching operations.
Advanced pump combined with a multi-stage control valve enables both fast bulk dispensing and fine-tuning for final accuracy, reducing material waste and improving consistency.
Integrated load cell system provides real-time gravimetric feedback, ensuring accurate dosing and repeatable batch results.
Intelligent control system supports formula management, automated dispensing, and real-time monitoring, enabling seamless integration with production workflows.

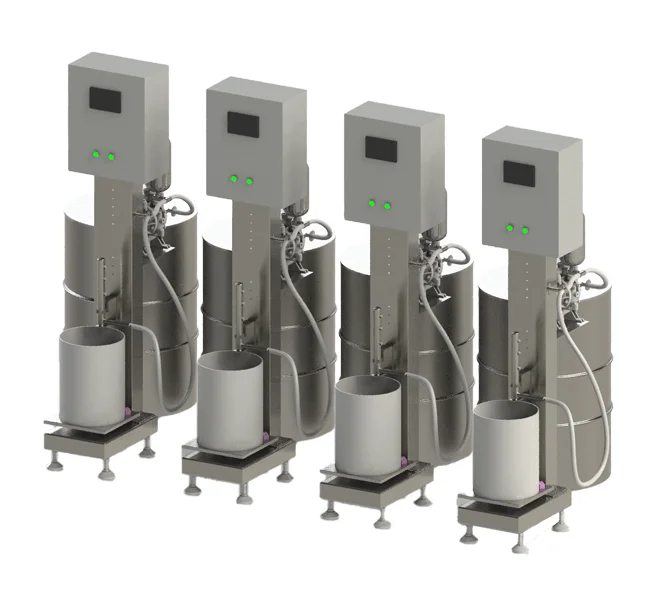

Compact and independent module design allows flexible installation and easy expansion into multi-channel systems as production demand grows.
Connects with upstream storage tanks or containers, ensuring stable material supply and smooth batching operation.
Robust industrial frame with integrated safety protection ensures reliable operation and long-term durability in demanding environments.

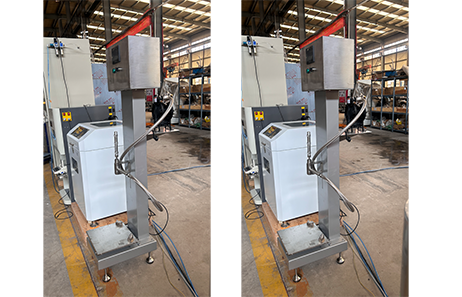

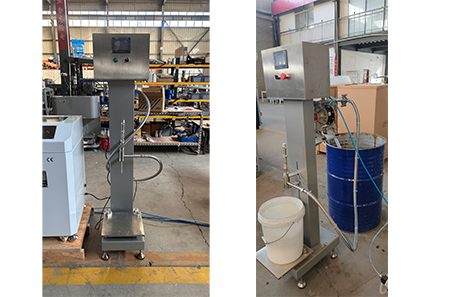

Detail Photos & Videos
FAQ
What is a DC-X paint dispenser used for?
The DC-X paint dispenser is designed for precise dosing of one specific material within a batching or dispensing system. It is commonly used in paint, ink, and chemical industries where accurate material control is required for consistent formulation results.
How does the DC-X paint dispenser ensure dosing accuracy?
The DC-X paint dispenser combines a high-precision pump, control valve, and real-time measurement system to deliver accurate material dosing. By controlling both flow rate and final dosing stages, it minimizes deviations and ensures repeatable batch results across production cycles.
Can the DC-X paint dispenser be expanded into a multi-channel system?
Yes, Sightec’s DC-X paint dispenser is built with a modular design, allowing multiple single-channel units to be combined into a multi-channel batching system. This flexibility supports scalable production and makes it easy to adapt to increasing capacity or more complex formulations.
Is the DC-X paint dispenser suitable for automated production lines?
The DC-X paint dispenser is designed for seamless integration with automated systems. It can be connected to PLC controls and production software, enabling formula management, real-time monitoring, and consistent batch processing. The auto dispensing system helps improve efficiency, reduce manual errors, and ensure stable production performance.
What’s the difference between the DC-1 single-channel module gravimetric paint dispenser and the DC-X single-channel paint dispenser?
DC-X Single-Channel Paint Dispenser: Each dispenser is equipped with its own scale and explosion-proof device, and each has a display screen on which the feed quantity can be set, effectively functioning as a standalone computer; Suitable for manual dispensing, single-material use, or when materials are completely different and cannot be mixed.
DC-1 Single-Channel Module Gravimetric Paint Dispenser: The entire dispenser comprises a single scale and explosion-proof unit, with a single computer controlling the dispensing mechanisms for all material hoppers, resulting in greater time savings and higher efficiency; suitable for sporadic or frequent dispensing with variable quantities.
