Description
Application
The F50D double-nozzle paint filling machine is a semi-automatic, high-precision filling system designed for water-based paints and architectural coatings. It handles viscous liquids up to 130 KU and is suitable for filling 1L, 4L, and 20L buckets and pails with high accuracy and consistent output. The dual-nozzle design significantly improves filling efficiency, making it ideal for paint manufacturers, coating producers, and chemical plants that require flexible multi-format production. Typical applications include water-based paints, latex paints, architectural coatings, and similar flowable liquid products. The machine supports both EX and non-EX configurations, allowing it to adapt to different production environments and safety requirements.
Highlights
- High equipment stability and low failure rate;
- Integrated self-learning algorithms to continuously optimize filling accuracy and efficiency
- Different packaging specifications can be switched, suitable for personalized orders or multi-formula production;
- The filling speed can be controlled manually to avoid bubbles or spillage caused by rapid filling
- Stainless steel material, long service life
- 1.5-inch ARO diaphragm pump with bag filter
- Integrated design for easy mobility
Product Parameter
| Material | Water base paint |
| Working environment | EX/Non-EX |
| Plug Style |  |
| Number of filling heads | Single Head/Double Heads |
| Bucket Size | 20L, 4L, 1L |
| Efficiency | 20L5- 6 barrels/min 4L 10-12 barrels/min 1L 14-16 barrels/min |
| Accuracy Level | 20L ± 30g 4L ± 10g 1L ± 5g |
| Production Tank Type | Platform storage tanks and cylinder scraping |
| Interface | 3-inch internal thread and 3-inch flange |
| Automatically Placing the Lids | yes |
| Automatic Capping | no |

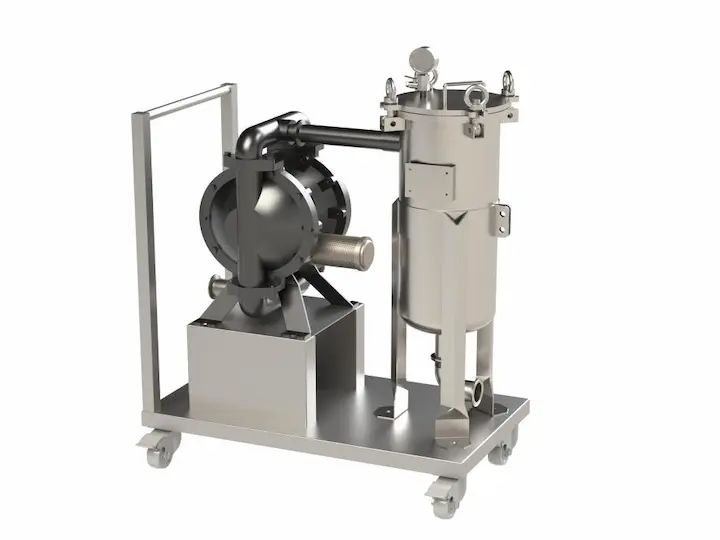

| Filter Trolley | yes |
| Power | 1kw |
| Exp | N/A |
| Electricity Consumption Environment | 240V 50Hz /415V 50Hz |
| Viscosity | 130KU |
System Components
The F50D-double nozzles paint filling machine system consists of:
Ensures precise liquid control
Intelligent and easy to operate
Real-time monitoring for accuracy
Smooth product transfer
The integrated workflow ensures efficient and stable production from start to finish.
Detail Photos & Videos
FAQ
What materials can the F50D double-nozzle paint filling machine handle?
The Sightec’s F50D double-nozzle paint filling machine handles water-based paints, architectural coatings, and viscous liquids up to 130 KU. It is not recommended for solvent-based or stone paint without viscosity and pump configuration review.
Can I switch between 4L and 20L buckets during the same shift?
Yes, the Sightec’s F50D-double nozzles paint filling machine is designed for flexible multi-format production. Operators can easily adjust the settings and nozzle heights to switch between 1L, 4L, and 20L packaging specifications with minimal downtime.
Does the F50D-double nozzles paint filling machine require an explosion-proof environment?
The Sightec F50D-double nozzles paint filling machine can be manufactured to suit your safety requirements. We offer both EX (Explosion-proof) and Non-EX configurations depending on the volatility of the chemicals you are processing.
Can your machine offer customisation?
Our machine can be customised according to customer requirements.
