Description
Application

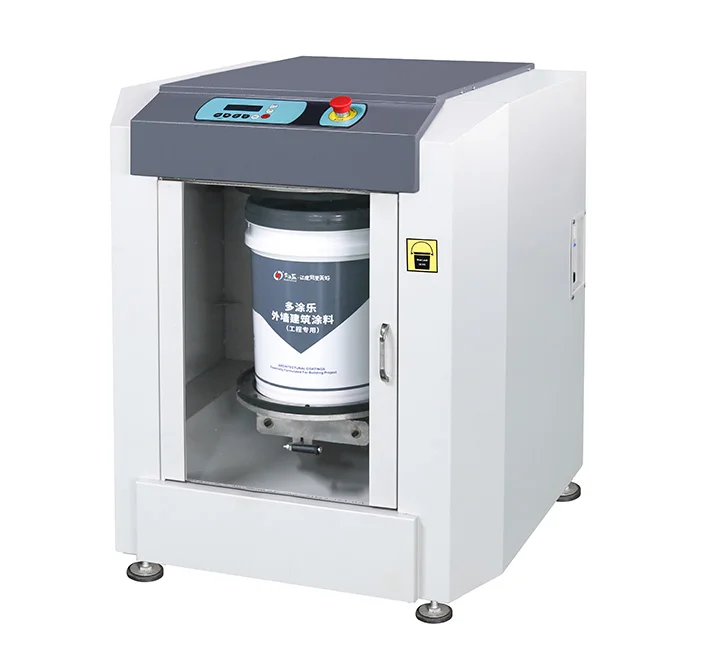

The CG-2A-04 gyro paint mixer is a versatile and high-performance solution widely used for mixing paints, inks, coatings, adhesives, and other chemical liquids. Its advanced gyroscopic mixing technology ensures 100% uniform blending without bubbles or dead zones, making it ideal for demanding industries such as automotive refinishing, printing ink manufacturing, industrial coatings, and chemical production that require consistent color and material quality. By delivering perfectly homogeneous mixtures in minutes, this gyro paint mixer significantly reduces manual labor and material waste, guaranteeing batch-to-batch consistency and accelerating your overall workflow.
Highlights
Rotation and revolution occur simultaneously
Single-directional and bi-directional rotating for option
Adjustable clamping force and mixing speed
Maximum load weight 35KG
Motor clutch, the barrel won’t drop
Product Parameter
| Mixing time | From 15 sec to 9 mins 45 sec(customized) |
| Big can mixing speed(can height>220mm) | 50-180 rpm/min |
| Small can mixing speed(can height<220mm) | 50-200rpm/min |
| Suitable can height | 95mm-410mm |
| Maximum can diameter | 320mm |
| Maximum can weight | 32 KG |
| Power supply | 220 V/110V — 50/60 HZ |
| Rated Power | 1100 W |
| Machine Size | 780(L)*730(W)*955(H) mm |
| WEIGHT | |
| Machine Weight | 242 KG |
| Gross Weight | 260 KG |
System Components
The CG-2A-04 gyro paint mixer system consists of:
Bi-axial rotation and revolution ensure efficient, all-directional mixing for consistent results.

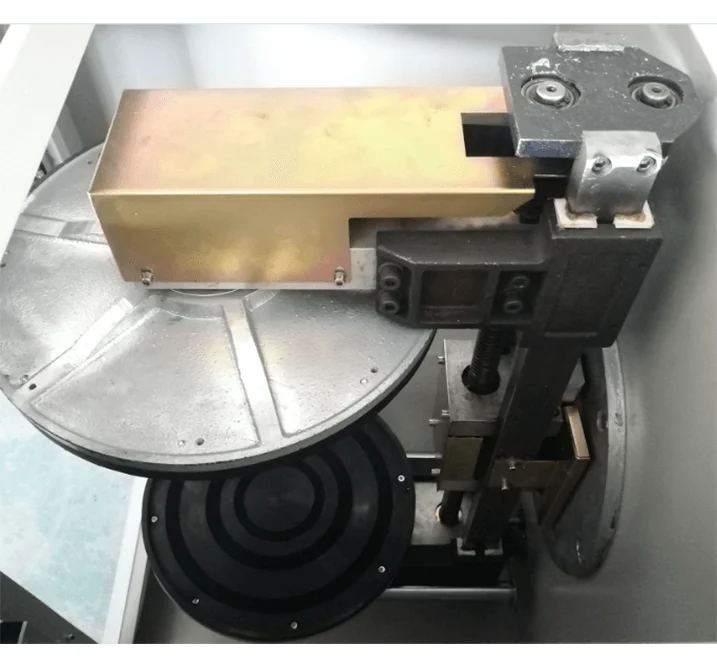

Adaptive clamping securely holds various container sizes, improving safety and operational efficiency.

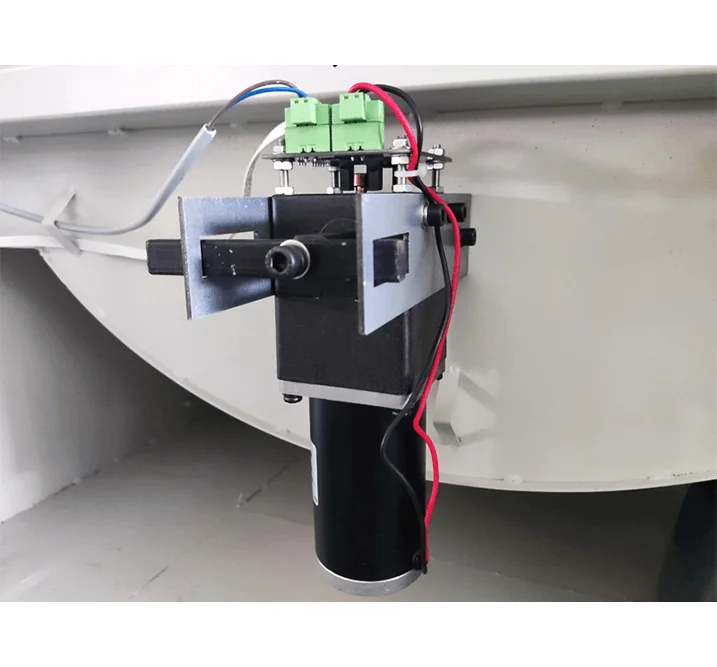

Dual-motor configuration provides stable power for both mixing and clamping, ensuring reliable performance.

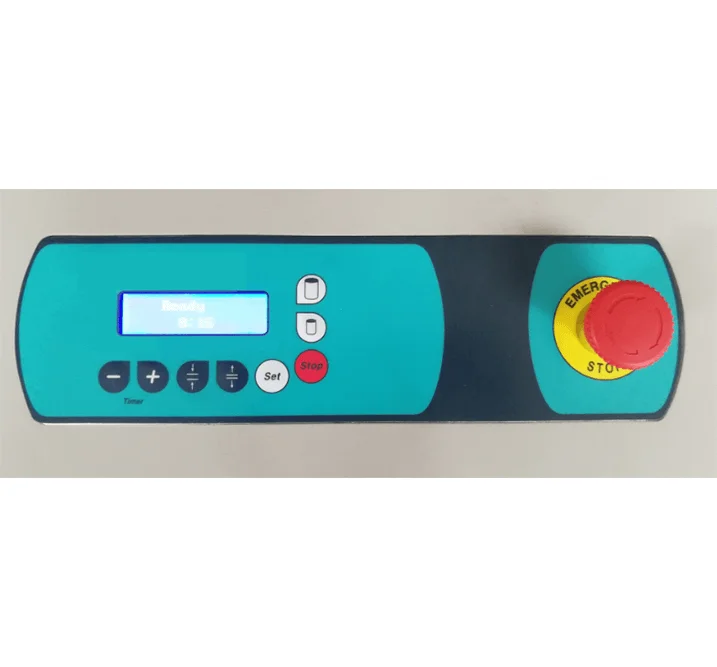

Digital interface enables precise time setting and easy operation, supporting repeatable mixing processes.

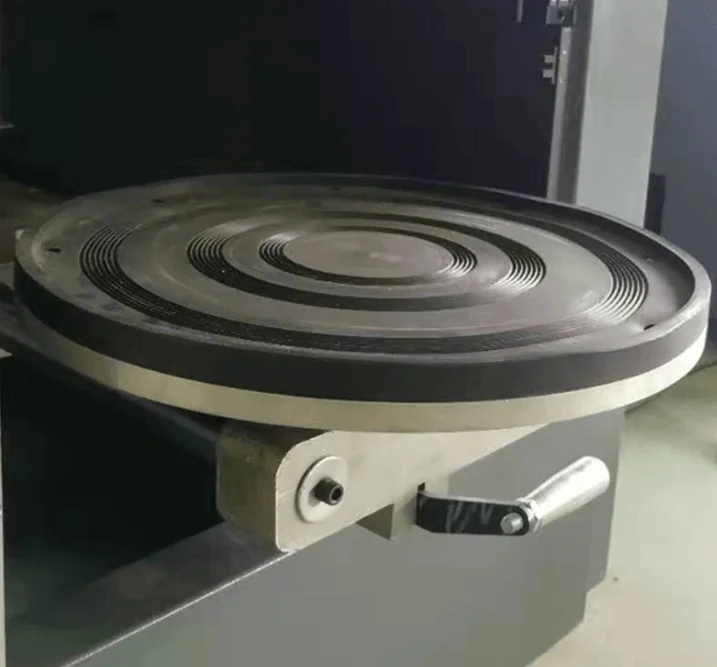

Heavy-duty frame with a movable platform allows easy loading/unloading and reduces vibration during operation.
The integrated workflow ensures efficient and stable production from start to finish.
Detail Photos & Videos
FAQ
What applications is the CG-2A-04 gyro paint mixer suitable for?
The CG-2A-04 gyro paint is widely used for mixing paints, inks, coatings, and other chemical liquids. Its gyroscopic mixing technology ensures uniform blending, making it ideal for industries requiring consistent color and material quality.
How does the gyroscopic mixing technology improve efficiency?
The CG-2A-04 gyro paint mixer uses a dual-axis (rotation and revolution) motion to achieve multi-directional mixing. This design allows materials to be blended evenly and quickly without opening the container, reducing contamination and improving efficiency.
What container sizes and weights can the mixer handle?
The CG-2A-04 gyro paint mixer supports a wide range of container sizes, typically accommodating volumes from 1L up to larger industrial cans, with a maximum load around 30–35 kg depending on configuration. This flexibility makes it suitable for both small batches and production use.
What safety features are included in the CG-2A-04 gyro paint mixer?
The CG-2A-04 gyro paint mixer is equipped with multiple safety systems, including a door interlock, automatic clamping protection, and emergency stop functions. These features prevent operation when the door is open and ensure safe, stable mixing during operation.
