Description
Application

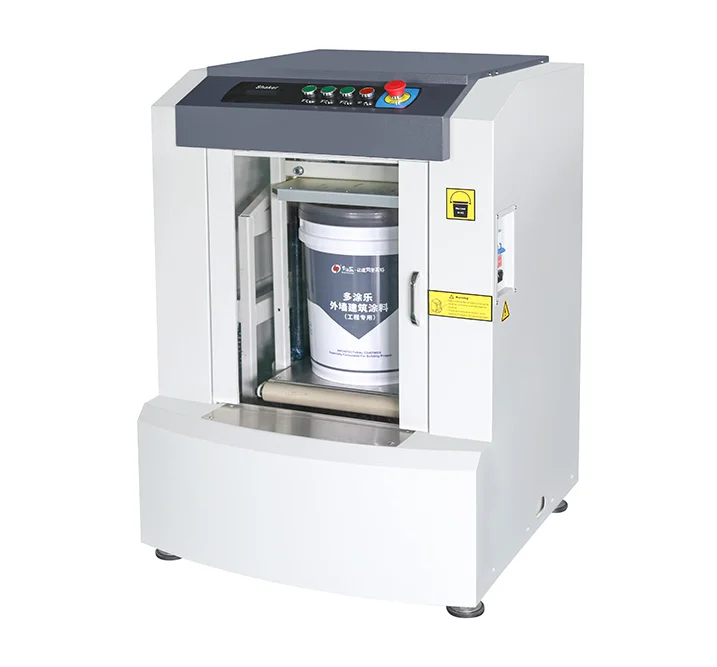

The CG-2S-03 auto paint shaker is designed for efficient mixing of paints, coatings, inks, and other liquid or semi-liquid materials. It is widely used in paint shops, manufacturing plants, and color mixing systems to ensure consistent results. The auto paint shaker only needs a few steps to start working, which is extremely appreciated by the operators. It is able to select the correct parameters to optimize clamping force and shaking time for you. During operation, the auto paint shaker surprises with its silence; the design of the frame contributes to absorbing the bothersome noises.
Highlights
- Automatic clamping;
- Low noise during shaking;
- Quickly and thoroughly mix by high-speed vibration;
- Optional shaking time between 1 – 9 mins;
- Adjustable clamping force for different sizes of can;
- Chinese and English user interface for option;
- The LCD display is easier to read for the operator and clearly shows each phase of the mixing process;

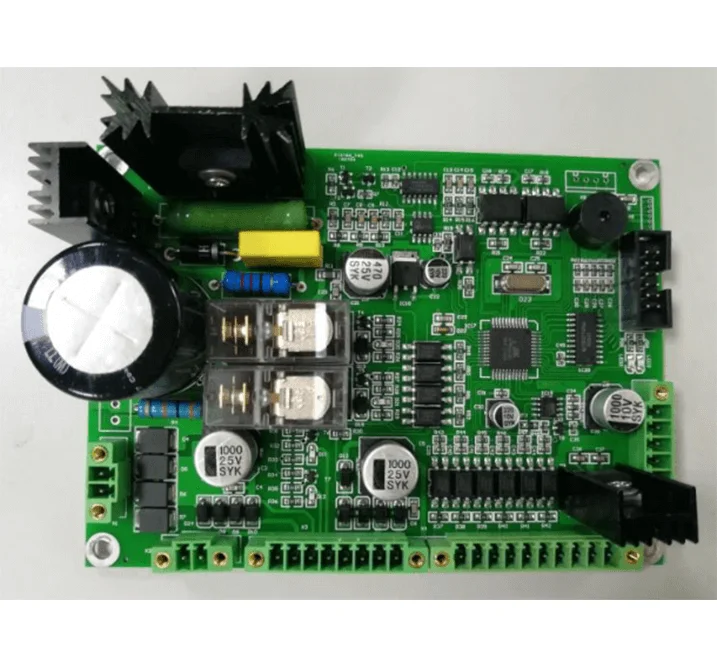

- Simple electrical structure, easy to maintain;
- Wheels and feet at bottom, convenient to move the mixer;
- Safety inspection switch for the door; the auto paint shaker will stop running when the door is open;
- The shaking structure is separate from the case and will not affect the case during high-speed shaking;
- Centrifugal switch and overheating protection for the shaking motor, effective in extending the motor life
Product Parameter
| BASE FEATURES | |
| Type | Vibrating Shaker |
| Clamping function | Automatic |
| Plate positioning after mixing cycle | Automatic |
| Shaking time | 1 to 120 minutes |
| Shaking speed | Up to 710 shakes per minute |
| CAN SPECS | |
| Type of cans | Round / Square / Oval |
| Suitable can height | 50- 400 mm |
| Maximum can diameter | 350mm |
| Maximum can handling | Yes (The can must be the same height) |
| Maximum weight | 35 KG |
| POWER SUPPLY / MACHINE ENVIRONMENT | |
| Power supply | Single phase 110 /220 V ±10% — 50/60 HZ |
| Rated Power | 750 W |
| DIMENSIONS | |
| Machine Size | 720 (L) X 710(W) X 1045(H) MM |
| Footprint | 0.51㎡ |
| WEIGHT | |
| Machine Weight | 206 KG |
| Gross Weight | 224 KG |
| LOADING QUANTITY | 42 sets / 20″ Container |
| PACKING | Carton |
System Components
The CG-2S-03 auto paint shaker system consists of:
High-frequency vertical vibration delivers rapid and consistent mixing, improving dispersion efficiency and reducing processing time.

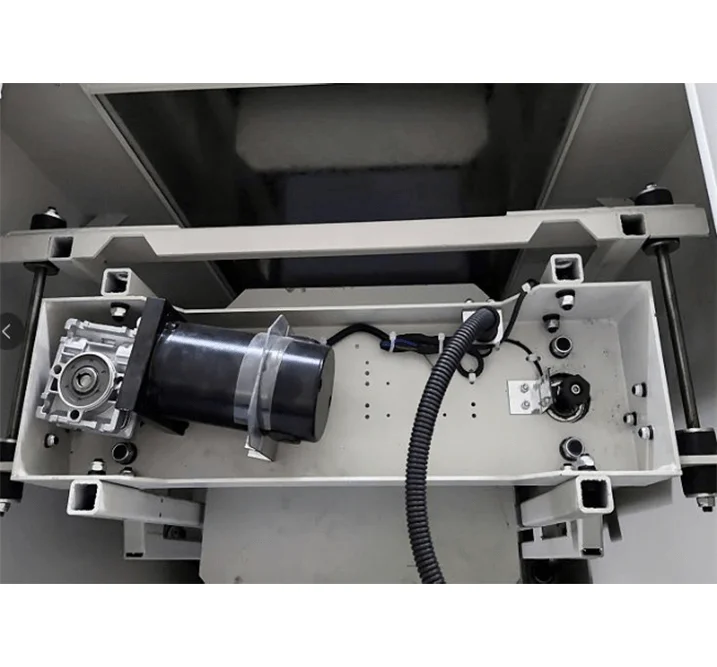

Adjustable clamping mechanism securely fixes containers of different sizes, ensuring safe and stable operation during shaking.

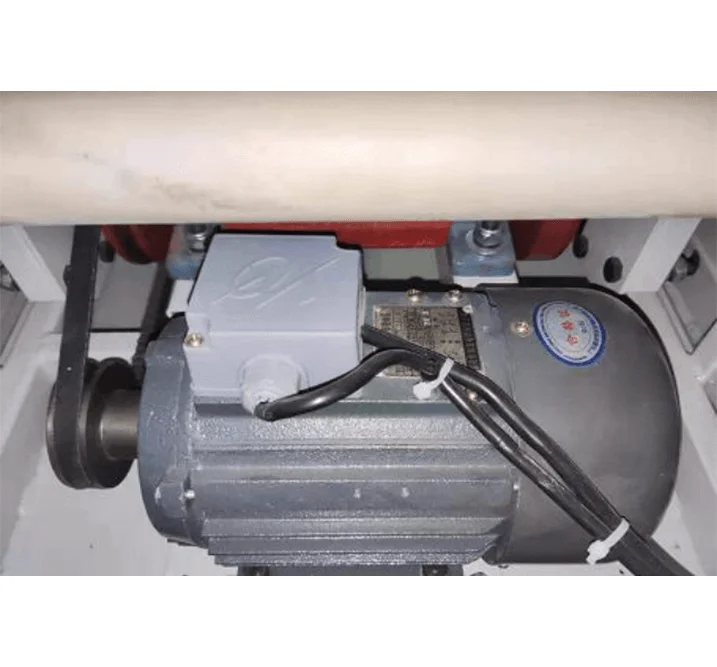

A high-performance motor provides stable vibration power, supporting continuous operation with consistent output.

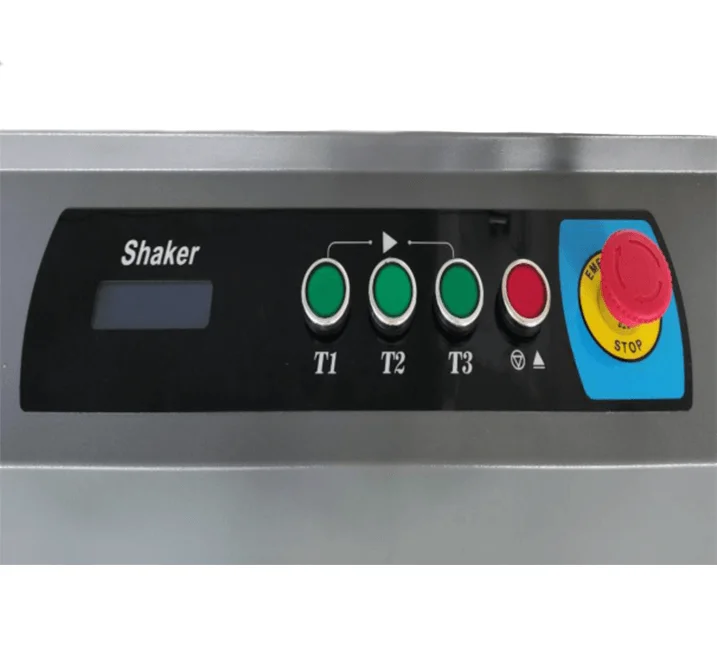

Intuitive control panel allows easy adjustment of mixing time and operation settings for precise and repeatable results.

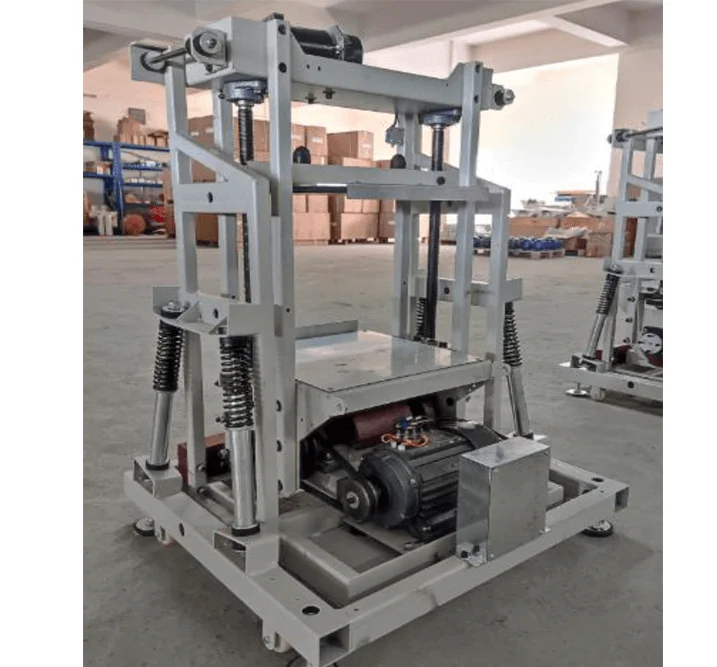

Robust steel construction reduces vibration impact and enhances machine stability and durability during high-speed operation.
The integrated workflow ensures efficient and stable production from start to finish.
Detail Photos & Videos
FAQ
What is the CG-2S-03 auto paint shaker used for?
The CG-2S-03 auto paint shaker is designed for efficient shaking and mixing of paints, coatings, inks, and other liquid or semi-liquid materials. It is widely used in paint shops, manufacturing plants, and color mixing systems to ensure consistent results.
How does the shaking system improve shaking and mixing performance?
The CG-2S-03 auto paint shaker uses a high-frequency vibration system that rapidly agitates the container, enabling fast and uniform blending. This method is especially effective for high-viscosity materials and reduces shaking and mixing time significantly.
What container sizes and capacities are supported?
The CG-2S-03 auto paint shaker typically supports a wide range of container sizes, from small cans to medium buckets (approximately 0.5L–20L), with a maximum load capacity of around 30–35 kg, depending on configuration.
What safety features are included in the CG-2S-03 auto paint shaker?
The CG-2S-03 auto paint shaker is equipped with essential safety protections, including a door interlock system, emergency stop function, and automatic clamping control. These features ensure safe operation by preventing the machine from running when conditions are not secure.
