Description
Application

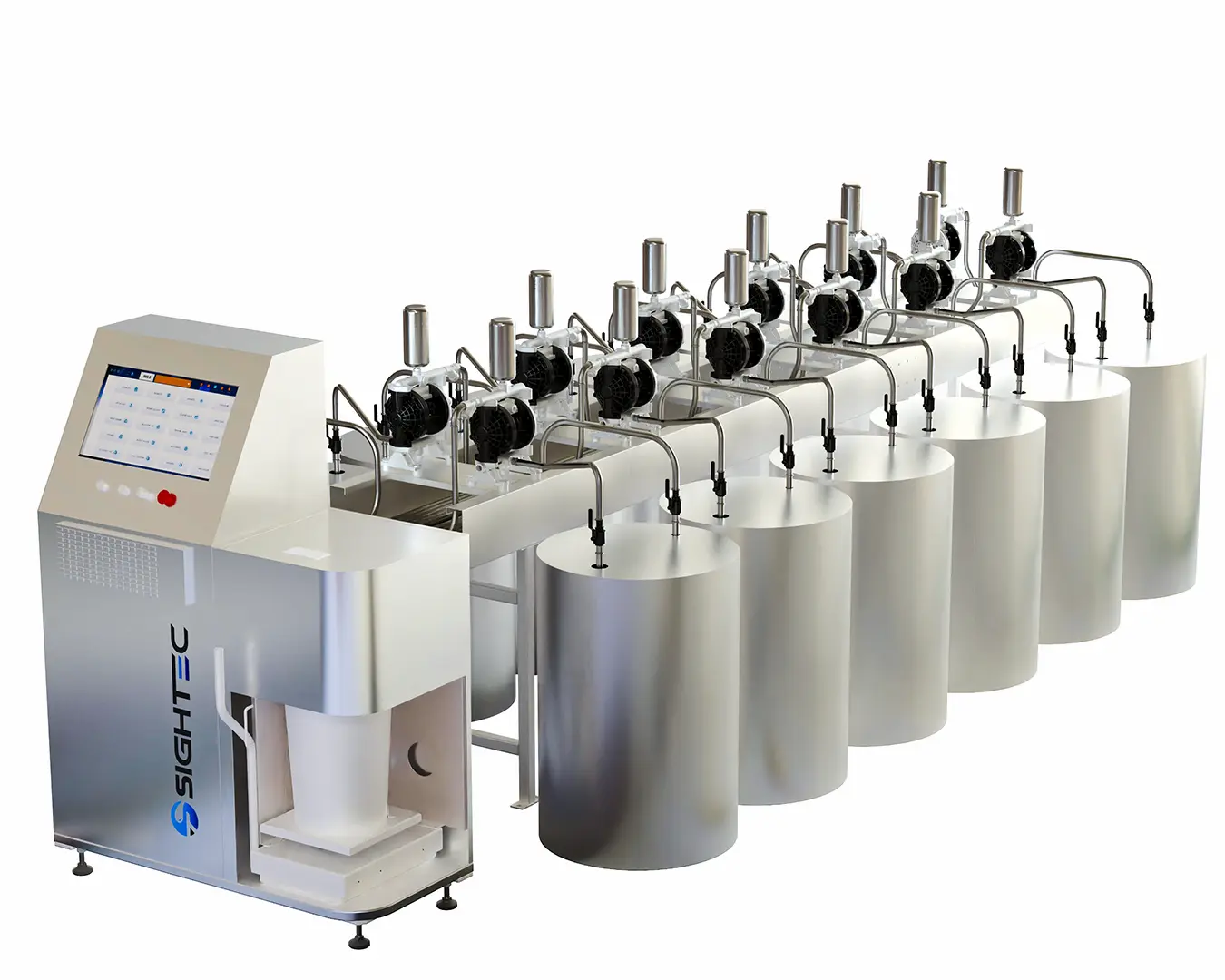

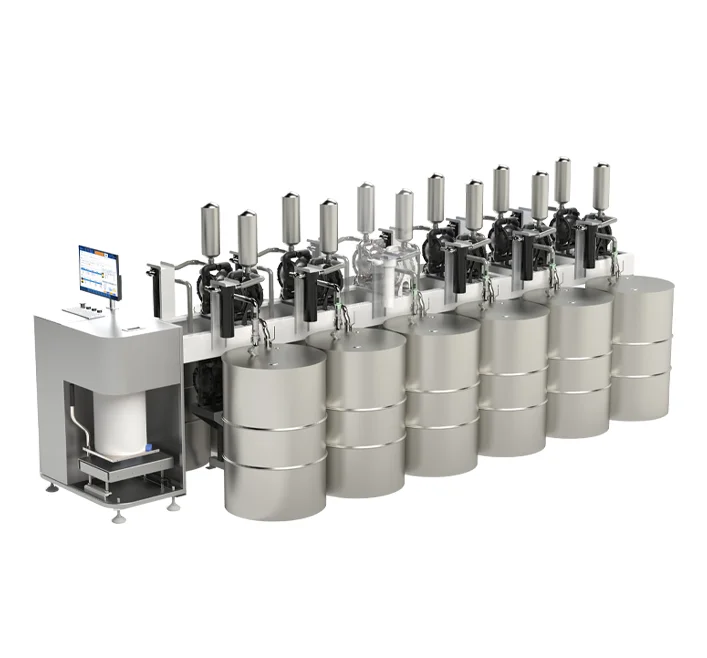

The DF-M automatic paint dispenser is a high-precision gravimetric dispensing system designed for coating production, small-batch tinting, and printing ink color matching. It delivers ±1g dosing accuracy per 30kg, features a compact footprint for flexible deployment, and supports up to 48 circuits (dual-station). Available in EX/Non-EX configurations, the DF-M dispenser integrates comprehensive software functions—including inventory management, formula management, and production task management—while remaining compatible with mainstream color measurement software and ERP systems.
Highlights
High-precision gravimetric dispensing ensures consistent color matching and minimal material waste.

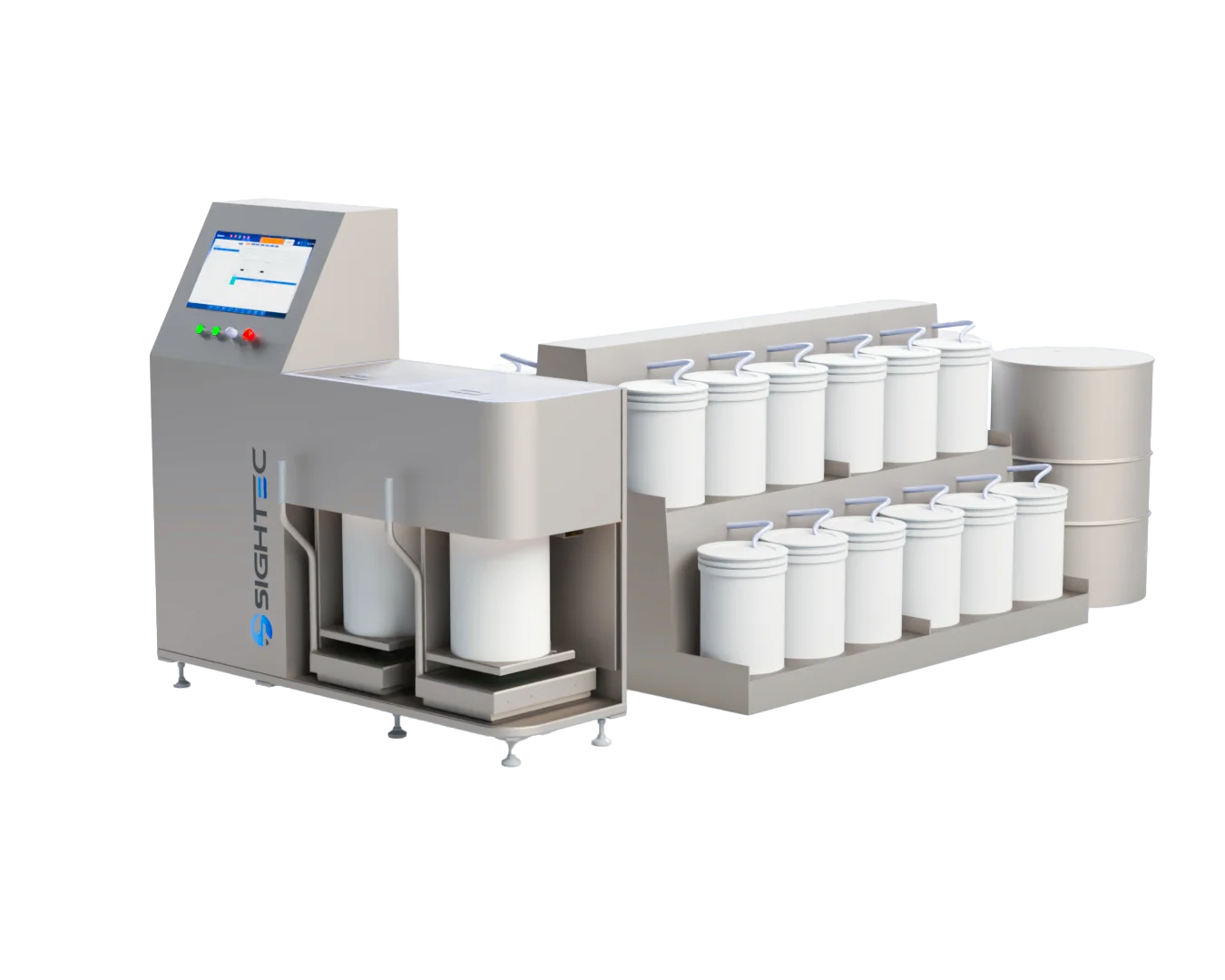

Rotating disk design with up to 48 circuits (dual-station) enables efficient multi-component dispensing and centralized material management

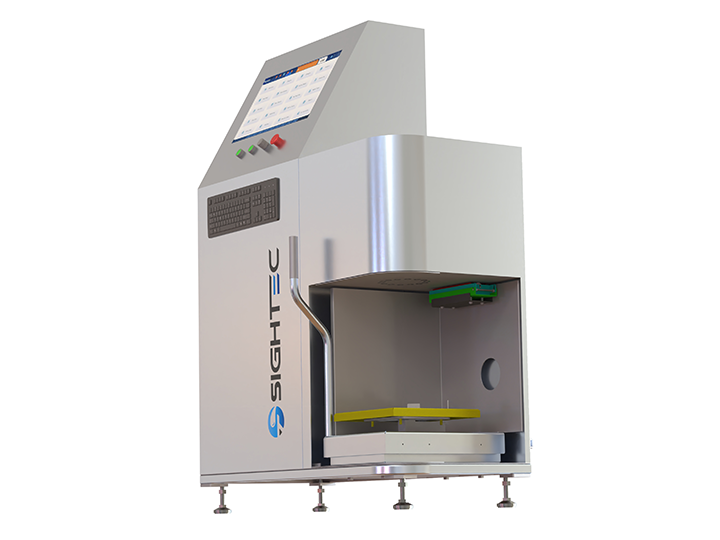

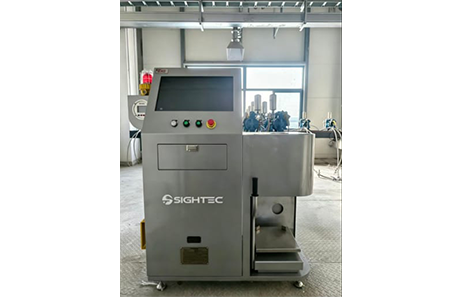

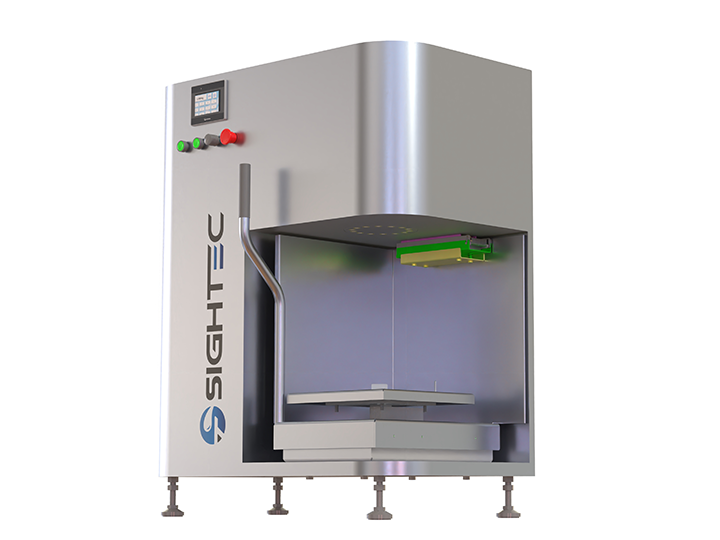

Available with standard control cabinet or positive-pressure explosion-proof cabinet, safely operating in hazardous solvent-based coating and ink production areas.
If the customer informs us in advance that they may require additional valve heads at a later date, we can reserve space within the automatic paint dispenser for their installation. Please note that no diaphragm pumps or associated systems will be installed in this reserved space at this stage; these will be fitted together with the valve heads when the upgrade takes place.
Product Parameter
| Working Environment | EX/Non-EX |
| Application | Water/Solvent Based Products |
| Number of Circuits | Up to 48 (dual-station) |
| Type of Material Tank | 20L/100L/200L |
| Minimum Container Opening | 280mm |
| Typical Batch Size | <30L |
| Product Viscosity | 3500CPS |
| Performance | 3-5 min per 20L |
| Valve Type | Two-stage Multi Flow valve |
| Accuracy | ±1g per 30kg Range |
| Pump Size | 0.5″/1″ |
| Valve Cleaner | No Cleaning or Roller Cleaning |
| Scale | ＜35kg |
| Cabinet | Standard Control Cabinet/Positive Pressure Explosion-Proof Control Cabinet |
System Components
The DF-M automatic paint dispenser system consists of:
Rotating disk structure with multiple canisters (up to 48) stores different colorants, enabling centralized material management and efficient multi-component dispensing.

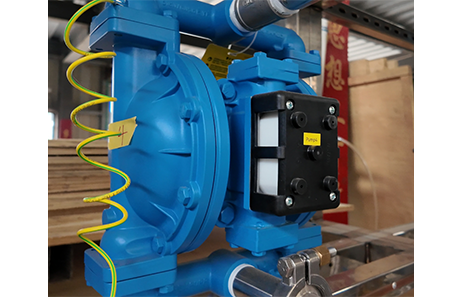

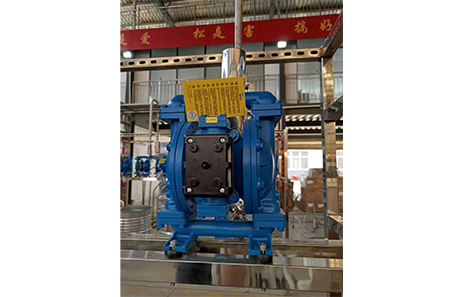

Each canister is equipped with an independent diaphragm pump to deliver accurate and repeatable colorant dosing, ensuring consistent formulation results across batches.

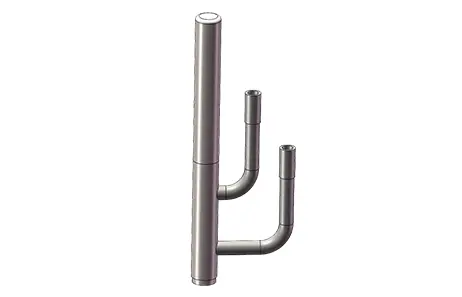

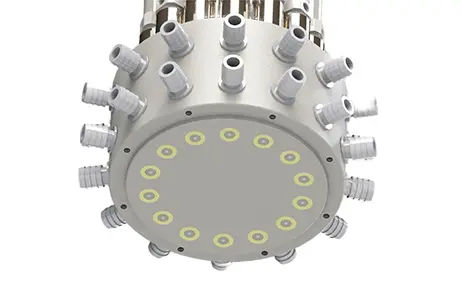

Advanced valve design supports both high-speed bulk dispensing and fine dosing control, improving accuracy while reducing material waste.
High-precision load cell technology enables weight-based dispensing with accuracy up to ±1g, ensuring stable and repeatable color matching performance.
For materials prone to severe sedimentation, an optional lid-mounted stirring device can be equipped. Timer-controlled stirring keeps colorants homogeneous, preventing pigment sedimentation and ensuring consistent dispensing quality.
Intelligent control system supports formulation management, automated dispensing, and real-time monitoring, enabling efficient and user-friendly operation.

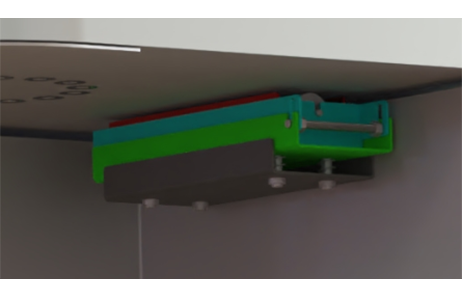

Modular pump and nozzle design allows quick disassembly for cleaning, reducing maintenance time and preventing cross-contamination.
Robust industrial frame with isolated mechanical movement ensures stable operation, durability, and long service life in demanding environments.

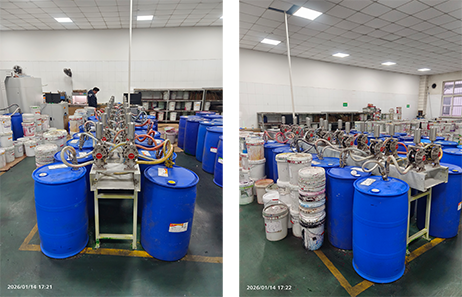

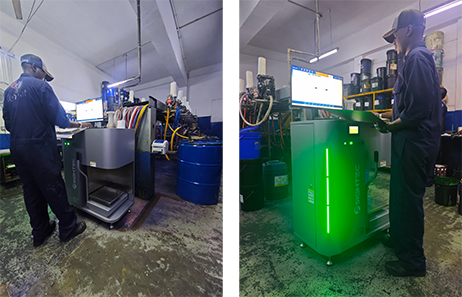

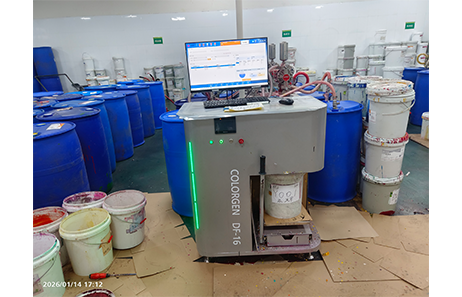

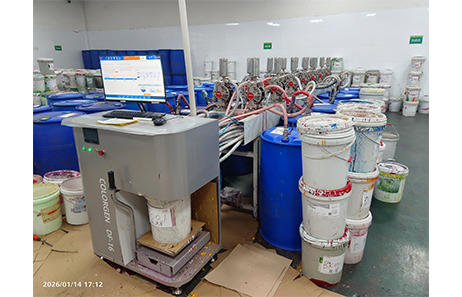

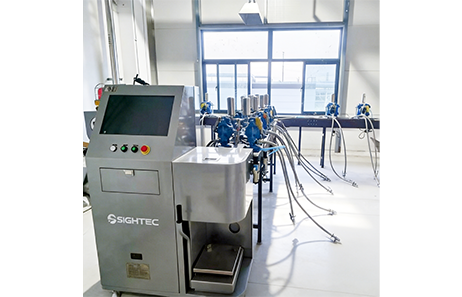

Detail Photos & Videos
FAQ
What is the DF-M automatic paint dispenser used for?
The Sightec’s DF-M automatic paint dispenser is designed for automated colorant dosing and paint formulation in industrial applications. It is widely used in coatings, inks, and chemical production where precise color matching and consistent batch quality are required.
How accurate is the DF-M paint dispensing system?
The DF-M automatic paint dispenser uses a gravimetric (weight-based) dosing system with a typical accuracy of ±1g within a 30kg range, ensuring highly consistent and repeatable results. This level of precision helps eliminate manual errors and reduces material waste in production.
What types of materials can the DF-M automatic paint dispenser handle?
The system is compatible with both water-based and solvent-based colorants. It supports up to 48 material canisters, making it suitable for complex formulations and multi-component dispensing applications.
What are the key advantages of the DF-M automatic paint dispenser?
The DF-M automatic paint dispenser offers fully automated dispensing, timer-controlled stirring, and easy maintenance with detachable pumps and nozzles. These features improve efficiency, prevent pigment settling, and ensure clean operation, making it ideal for modern, high-precision production environments.
