Description
Application
The D2-A1 automatic sequential ink dispensers are high-performance sequential dispensing systems designed for paint manufacturers, automotive refinishing shops, and industrial coating facilities. Unlike manual dispensers, the automatic sequential ink dispensers use PLC-controlled piston pumps to deliver precise volumetric dosing with minimal operator intervention. With 16 canisters, Excel formula import, and remote diagnostic capabilities, the D2-A1 automatic sequential ink dispensers streamline color matching, reduce material waste, and ensure batch-to-batch consistency. Whether you‘re producing custom paint colors or managing small-batch production runs, the D2-A1 ink dispensers deliver industrial-grade reliability in a compact footprint
Highlights
The D2-A1 automatic sequential ink dispensers feature programmed automatic nozzle cleaning at set intervals, preventing colorant buildup and ensuring consistent flow.
Equipped with high-precision piston pump technology, the D2-A1 automatic sequential ink dispensers deliver accurate volumetric dispensing down to 1/384 fl.oz. (0.077 ml) without the need for frequent recalibration. This ensures reliable color matching across thousands of batches.
The system supports remote diagnostics, allowing our technical team to troubleshoot issues without on-site visits. This minimizes downtime and lowers maintenance costs for your operation.
Formula data in Excel format can be directly imported into the tinting system. This eliminates manual data entry errors and accelerates formula setup for new colors.
Product Parameter
| BASE DISPENSER FEATURES | |
| Colorant base compatibility | Water-based |
| Dispensing type | Volumetric sequential dispensing |
| Canister quantity | 16 canisters*2.3L |
| Dispensing technology | Piston pump |
| Pump Capacity | 50 ml |
| Canister inner diameter | 90mm |
| Canister capacity | 2.3L |
| Canister material | PP |
| Valve seal ring type | Silicone |
| Circuit flow rate | 0.25 L/min |
| Minimum dispensed quantity | 1/384 fl.oz. (0,077ml) |
| CAN TABLE SIZE | |
| Length | 350 mm |
| Depth | 310 mm |
| Maximum can height | 570 mm |
| POWER SUPPLY / MACHINE ENVIRONMENT | |
| Power supply — Frequency | 220 V ±10% — 50 / 60 HZ |
| Rated power | 150 W |
| DIMENSIONS | |
| Machine Size | 665 (L) X 750(W) X 1210(H) MM |
| Footprint | 0.5 ㎡ |
| WEIGHT | |
| Machine Weight (with 16 canisters) | 114 KG |
| Gross Weight (with 16 canisters) | 127 KG |
| Loading Quantity | 21 sets / 21″ Container |
| PACKING | Carton |

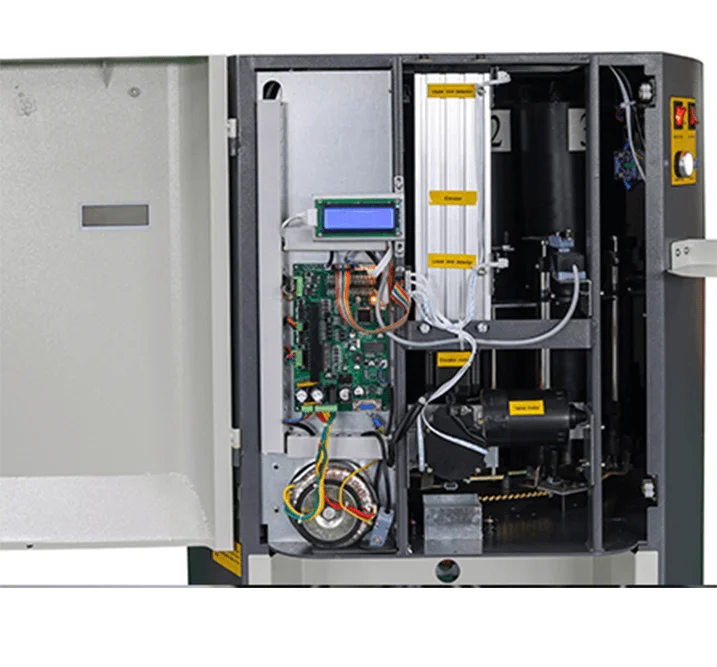

System Components
The D2-A1 automatic sequential ink dispensers system consists of:

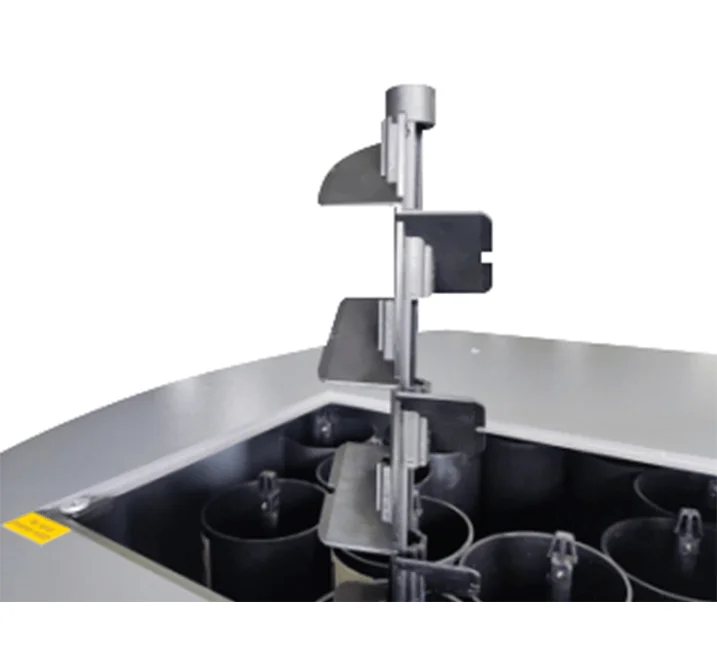

Multiple sealed canisters store different colorants, ensuring stable supply and preventing contamination or evaporation during operation.
Advanced piston pump technology delivers accurate, repeatable dosing for consistent color matching.
Anti-drip, wear-resistant nozzle design ensures clean dispensing and maintains long-term dosing accuracy.
Continuous or periodic stirring prevents pigment sedimentation, keeping colorants homogeneous and ready for use.
High-precision load cell system provides real-time feedback for gravimetric dispensing and improved dosing accuracy.
Intelligent control system with user-friendly interface enables easy operation, formula management, and real-time monitoring. Automatic ink dispensing systems rely on PLC to control valves, pumps, and dosing processes with high precision.
Robust, corrosion-resistant structure ensures stability, durability, and reliable operation in industrial environments.

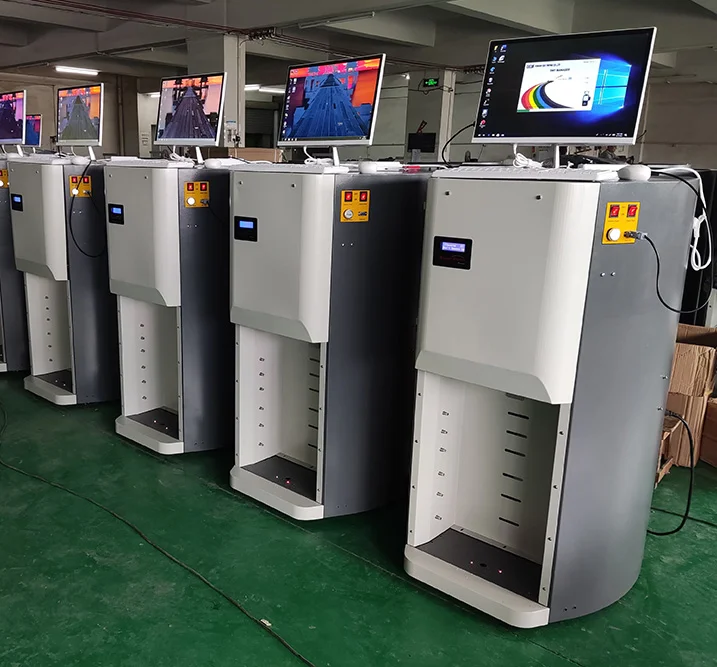

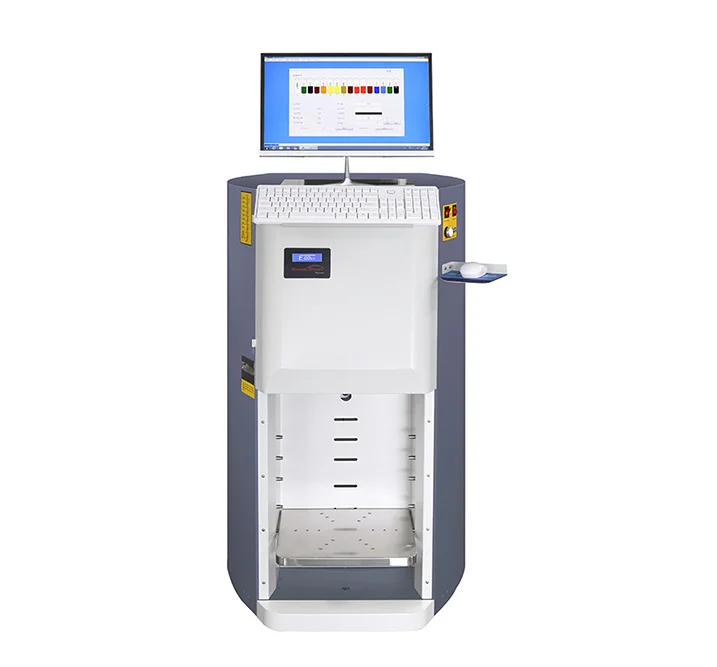

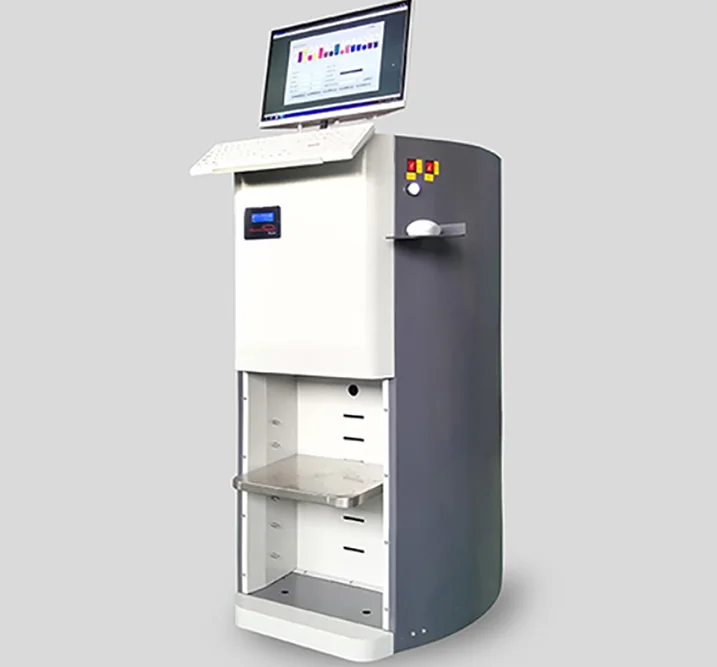

Detail Photos & Videos
FAQ
What is the D2-A1 automatic sequential ink dispensers used for?
The D2-A1 automatic sequential ink dispensers are designed for precise colorant dosing in paint, ink, and coating applications. It is commonly used for color matching, formula verification, and small-batch production, helping manufacturers achieve consistent color results with minimal manual intervention.
How do the D2-A1 automatic sequential ink dispensers ensure accurate colorant dispensing?
The D2-A1 automatic sequential ink dispensers use high-precision piston pump technology and a PLC-controlled dosing system to deliver as little as 1/384 fl. oz. (0.077 ml). Unlike manual systems, it eliminates human error and does not require frequent recalibration
What types of materials can the D2-A1 automatic sequential ink dispensers handle?
The Sightec’s D2-A1 automatic sequential ink dispensers can work with a wide range of colorants, including water-based and solvent-based inks and coatings. Its multi-canister design allows it to handle multiple components simultaneously, making it suitable for complex formulations.
What are the main advantages of an automatic paint dispenser over a manual one?
Automatic dispensers like the D2-A1 automatic sequential ink dispensers offer higher efficiency, consistent color quality, reduced material waste, and lower labor costs. They also support data-driven color management through formula import and remote diagnostics.
Is the D2-A1 automatic sequential ink dispensers suitable for small-batch production?
Absolutely. The D2-A1 automatic sequential ink dispensers are designed for flexible production, from small-batch custom colors to continuous production runs. Its compact footprint (0.5 ㎡) makes it suitable for both retail paint stores and industrial facilities
